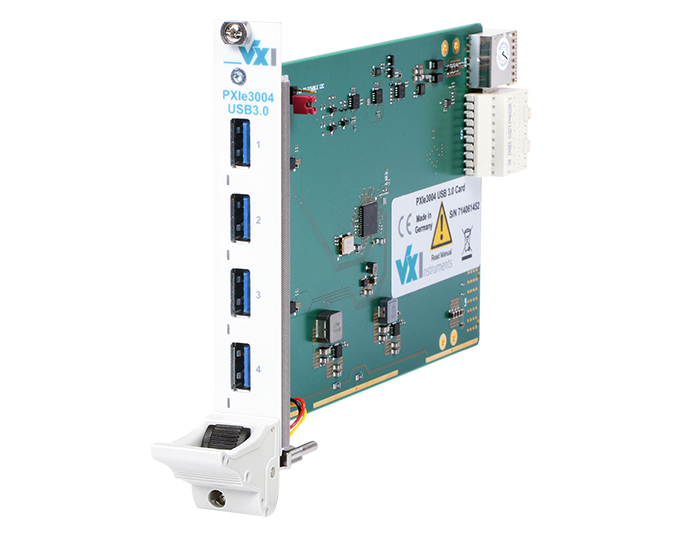

PXIe3004 PXIe USB 3.0 Card

Add 4 USB 3.0 ports to your PXI test system. Connect high-speed peripheral components such as external cameras or devices for data acquisition.
Get a quote Find Distributor
  • 4x front panel Type-A USB 3.0 host connectors
  • PXI Express peripheral slot card
  • Texas Instruments PCI Express to quad-port USB 3.0 controller
  • PCI Express x1 Gen2 interface for optimum performance
  • USB 3.0 xHCI (eXtensible host controller interface) SuperSpeed supported
  • USB 2.0 High-Speed, Full-Speed, Low-Speed supported
With the PXIe3004 card, you can easily add 4 USB 3.0 ports and connect high-speed peripheral devices in the PXIe chassis. The maximum data rate of the USB 3.0 ports can be used via the PXIe interface. This is ideal for applications with high data volumes, such as the recordings of high-speed cameras or USB3 mass storage devices.
