Overview Chassis & Accessories

PXI (Express) Chassis & Controller

PXI chassis can accommodate plug-in modules according to the PXI/PXIe/cPCI standards. The basic device provides the supply, the ventilation and the bus for controlling the modules. PXI chassis differ in size and therefore in the number of slots available for compatible devices. Either an external PC, which is connected to the chassis via a link connection, or an embedded controller in the form of a PXI plug-in module acts as the system controller.

• 1/6/12 PXI/PXIe/cPCI slots
• PXIe slots with 4 PCIe links
• Integrated trigger card (PXCe4006 option)

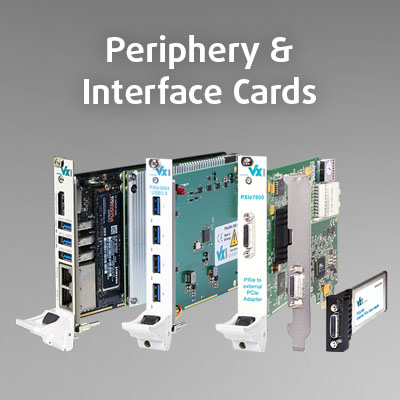

Peripherals & Interface Cards

Interface cards are plug-in modules that provide interfaces for control/communication of/with external components or test items. The modules themselves are controlled via standard interfaces such as USB 2.0/3.0, PCI, PCIe, PXI, PXIe or LAN.

• Interface cards for controlling PXI systems
• 4-port PXIe USB 3.0 card
• Trigger module with 12 independent lines
