Digital I/O
Dynamic pattern generation and recording

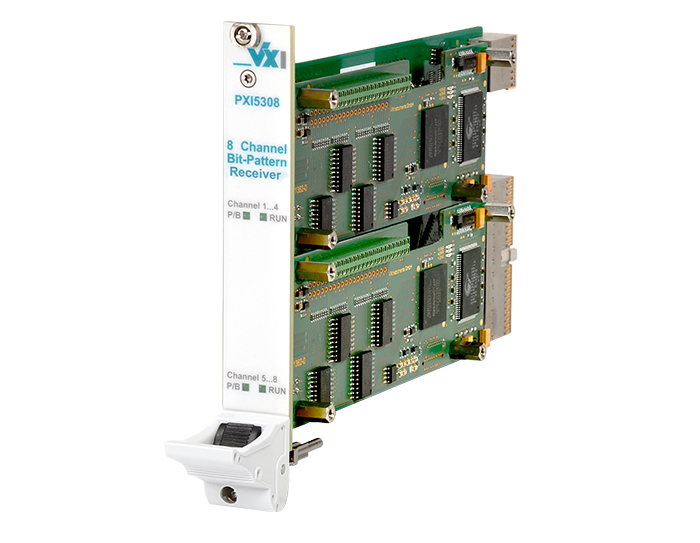

4/8 channels: 6.6 MS/s, 8 Bit
Flexible Trigger management:
4 front panel, 8 PXI backplane, software
Standards: PXI, PXIe

APPLICATIONS

  • Generating digital data streams
  • Dynamic testing of digital components
  • Parallel testing of several test items

WHAT IS A DIGITAL I/O CARD?

With digital I/O cards, static or dynamic bit patterns can be generated or recorded. Each bit is assigned a control signal for an output and a sensor signal for an input. The usual voltage range for the inputs and outputs is between 2 V (TTL) and 24 V (automation).

VX INSTRUMENTS PARTICULARITIES

VX Instruments digital I/O cards can be flexibly adapted to the respective application. The customer can freely define the optimum output levels and connectors via individual output modules.
